Description

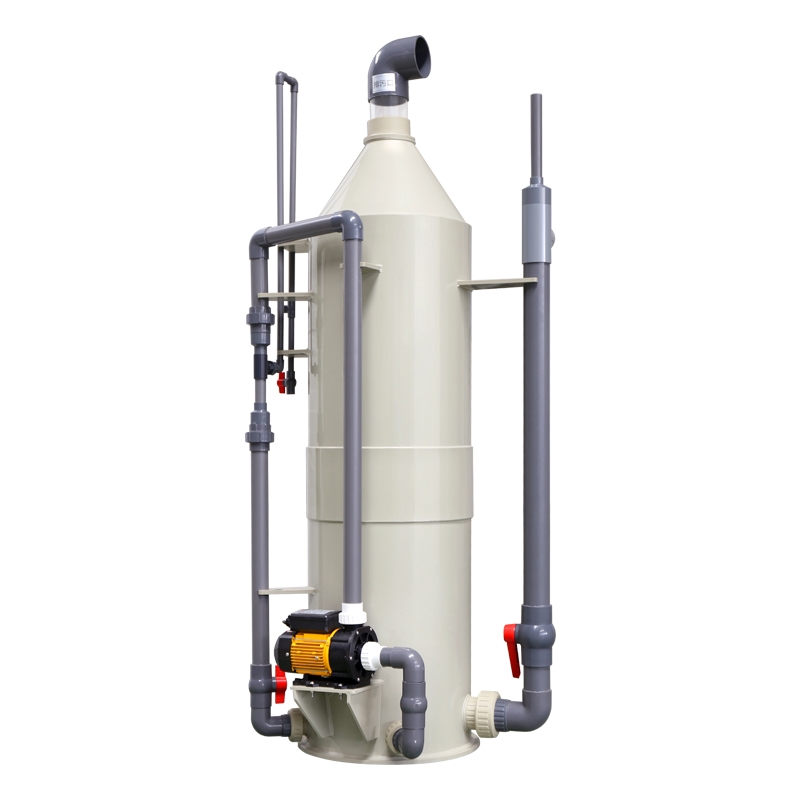

OS series protein skimmer
1.Protein Skimmer will be remove fish feces, feeds and other organics before they are changed into ammonification, to avoid them become poisonous substances. Also it will remove humic substances and organic acid increase water clarity and make the PH value stable.
2.There has emptying outlet on the bottom, so can drain all the water away when not use the equipment, to avoid grow germs.
3.It has the function of Ozone reaction tower. Inject Ozone to disinfect, sterilize and remove algae and improve the protein separation effect at the same time.
4.The waste foam will be discharged directly, no foam collection cup, no need washing, more practical and environmentally friendly.
Specification
Model | Water Flow | Size | Voltage | Power | Water inlet | Water outlet | Outfall |
(M3/H) | mm | V 50HZ | KW | mm(Inch) | mm(Inch) | mm(Inch) | |
OS-PT-10 | 10 | Ø600*2000 | 220 | 0.37 | Ø50(1.5”) | Ø90(3”) | Ø110(4”) |
OS-PT-20 | 20 | Ø750*2000 | 0.55 | Ø50(1.5”) | Ø110(4”) | Ø110(4”) | |
OS-PT-30 | 30 | Ø750*2300 | 0.75 | Ø63(2”) | Ø110(4”) | Ø110(4”) | |
OS-PT-40 | 40 | Ø1000*2500 | 0.9 | Ø63(2”) | Ø140(5”) | Ø160(6”) | |
OS-PT-50 | 50 | Ø1000*2800 | 1.1 | Ø75(2.5”) | Ø140(5”) | Ø160(6”) | |
OS-PT-60 | 60 | Ø1000*3000 | 1.5 | Ø75(2.5”) | Ø160(6”) | Ø160(6”) | |
OS-PT-80 | 80 | Ø1250*3200 | 1.85 | Ø90(3”) | Ø160(6”) | Ø200(8”) | |
OS-PT-100 | 100 | Ø1250*3350 | 2.2 | Ø110(4”) | Ø200(8”) | Ø200(8”) | |
OS-PT-120 | 120 | Ø1250*3500 | 3 | Ø110(4”) | Ø200(8”) | Ø200(8”) | |
OS-PT-150 | 150 | Ø1500*3000 | 3 | Ø160(6”) | Ø250(10”) | Ø200(8”) | |
OS-PT-160 | 160 | Ø1500*3600 | 3 | Ø160(6”) | Ø250(10”) | Ø200(8”) | |
OS-PT-200 | 200 | Ø1500*4200 | 3.7 | Ø160(6”) | Ø250(10”) | Ø200(8”) | |
OS-PT-250 | 250 | Ø1650*4200 | 4.4 | Ø200(8”) | Ø315(12”) | Ø200(8”) | |
OS-PT-350 | 300 | Ø1650*4600 | 6 | Ø200(8”) | Ø315(12”) | Ø200(8”) |
