Product description

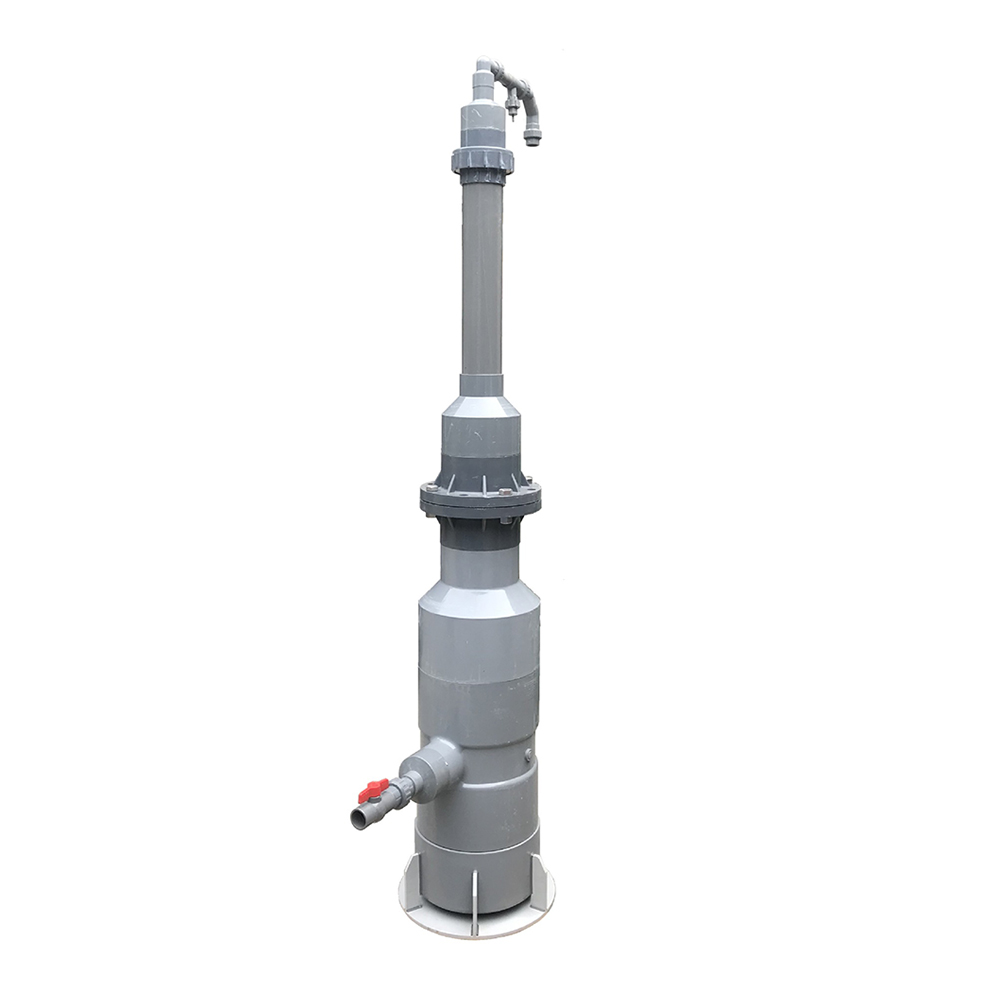

The oxygen mixer sucks pure oxygen into the cone through the venturi jet, and the oxygen-water mixture is fully sheared and stirred in the jet pipeline, and then enters the cone after full mixing. Inside the cone, the pure oxygen insoluble in water floats on the top of the cone, and continues to mix with water under the action of high pressure, and the pure oxygen dissolved in water travels out of the oxygen cone and enters the fish pond. In the process of mixing, no oxygen can escape the oxygen cone species. In theory, the use of oxygen cones to oxygenate fish ponds can achieve 100% pure Yang utilization. Therefore, oxygen cones are especially suitable for high-density aquaculture that uses pure oxygen to increase oxygen. in the system.
Specification
Model | Water flow rate （m3/h） | Oxygen flow | Height | Water outlet/inlet mm | Input water pressure MPa | maximum pressure |
OS-SK03 | 1.8~2.7 | 45~68 | 1442 | 20 | >0.2 | <0.5 |
OS-SK05 | 3.4~5.7 | 86~140 | 1575 | 25 | >0.2 | <0.5 |
OS-SK15 | 7.9~14.8 | 200~367 | 2184 | 50 | >0.2 | <0.5 |
OS-SK20 | 14.8~20 | 367~508 | 2286 | 50 | >0.2 | <0.5 |
OS-SK30 | 20~30 | 508~735 | 2286 | 63 | >0.2 | <0.5 |
OS-SK40 | 30~45 | 735~1134 | 2286 | 90 | >0.2 | <0.5 |
