Product feature

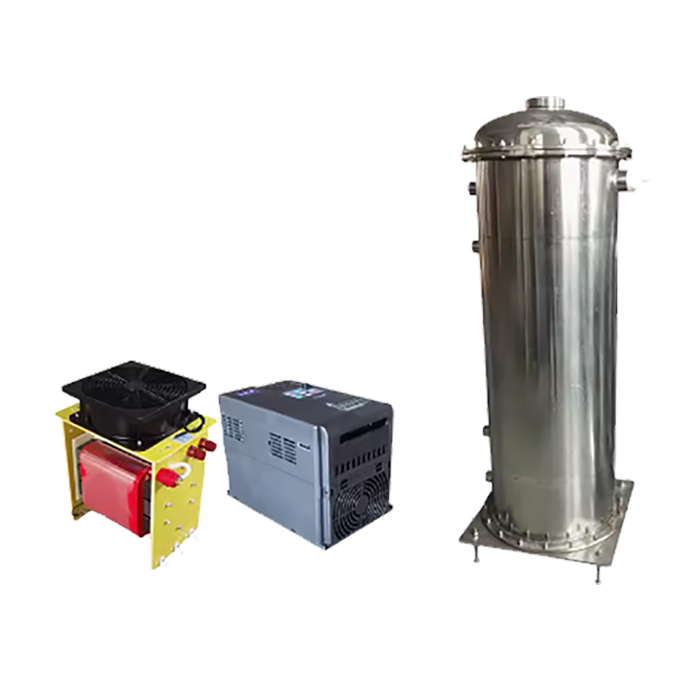

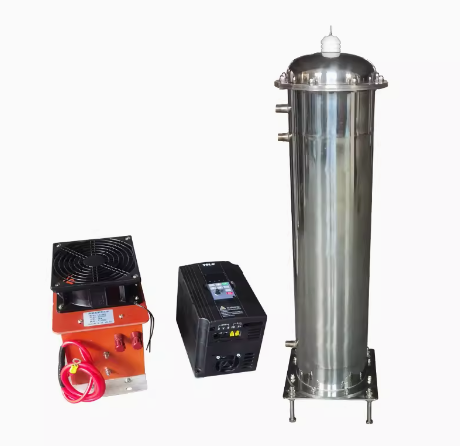

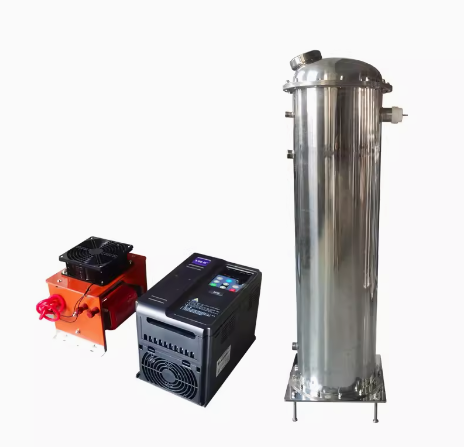

1. OS-L168-200~1000G Cellular Quartz ozone reaction chamber uses corona discharge technology.
2. It adopts imported material of high pure silica quartz Internal electrode and SS 316L external electrode.
3. It uses high purity fluorine rubber ring seal and SS316L connections which are best anti-oxidation material.
4. Cooling way : water cooling
5. High ozone concentration 70~140mg/l
6. Ozone output: 200G~1000G/Hr
7. Stable ozone output, long service life
8. frequency converter 7khz, output voltage 4kv
Product specification
| Model | unit | OS-L168-200 | OS-L168-300 | OS-L168-500 | OS-L168-1000 |
| ozone output | g/hr | 200 | 300 | 500 | 1000 |
| o3 concentration (oxygen ) | mg/l | 80~140 | 80~150 | 80~140 | 80-150 |
oxygen flow | LPM | 4-40LPM | 6-60LPM | 1~5m3/h | 1~8m3/h |
| air source | LPM | 160-180 | 260-280 | 400-430 | 800-900 |
| o3 concentration (air) | mg/l | 10~20 | 10~20 | 10~20 | 10~20 |
| working voltage | v/hz | 110/220/380v | |||
| power | w | 50~1300 | 50-2600 | 50-4500 | 50-8000 |
| cooling way | water cooling | ||||
| ambient temperature | °c | -10~55°c | |||
| ambient humidity | %RH | less than 85% | |||
| water inlet&outlet | mm | 1/2" | 3/4" | 3/4" | 3/4" |
| air inlet & outlet | mm | 1/2" | 3/4" | 3/4" | 3/4" |
| ozone tube size | cm | D22*H90 | D28*H110 | D33*H110 | 140*80*180 |
| net weight | kg | 36 | 50 | 82 | 130 |
