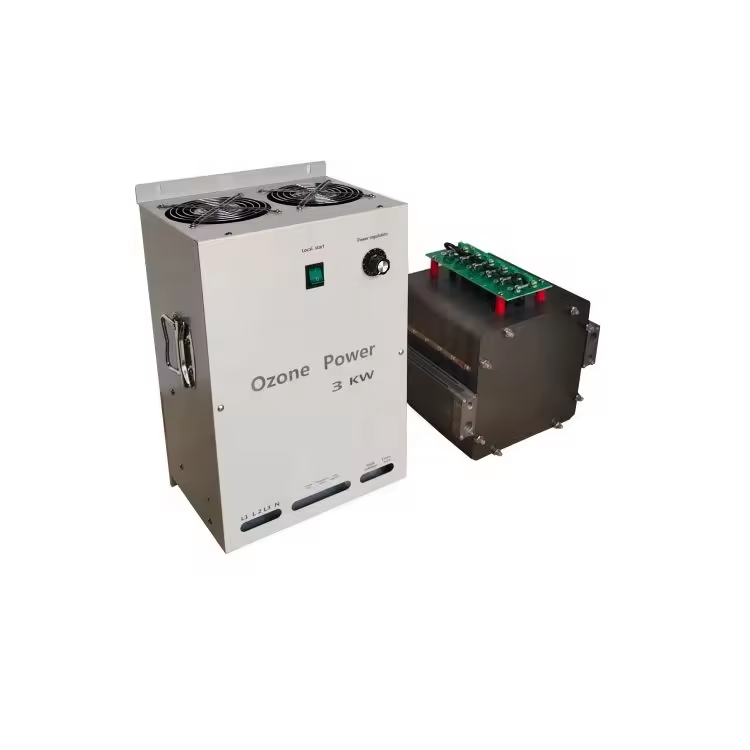

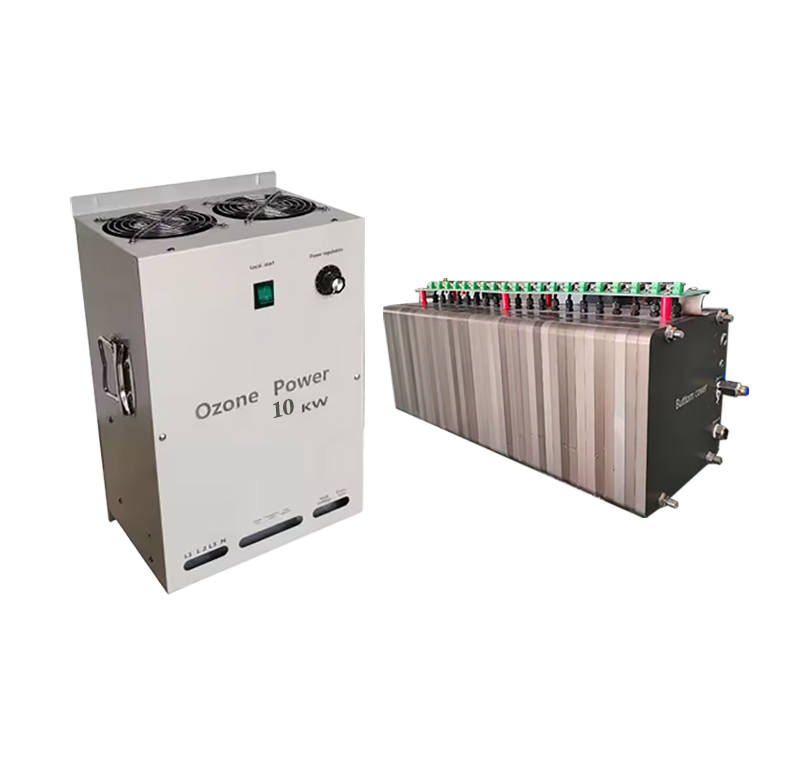

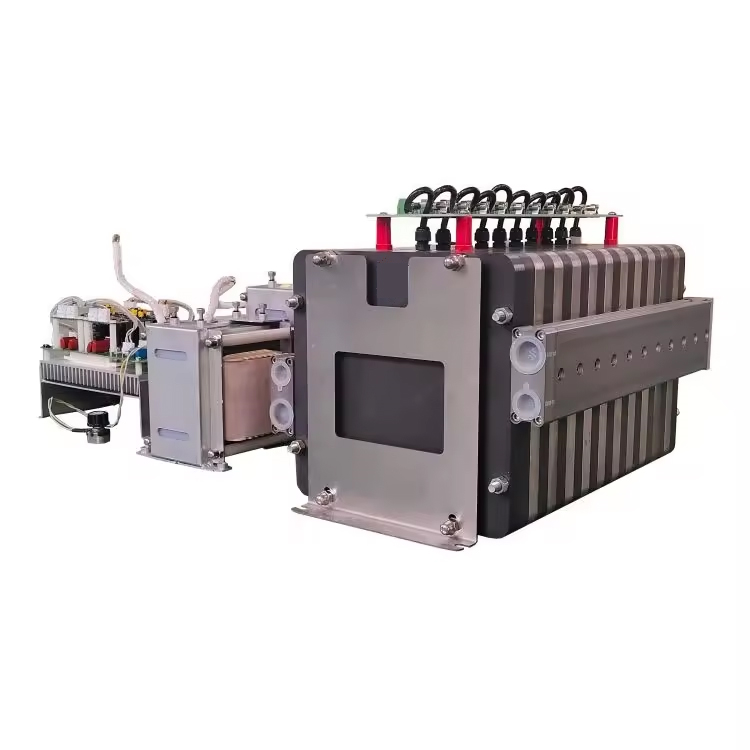

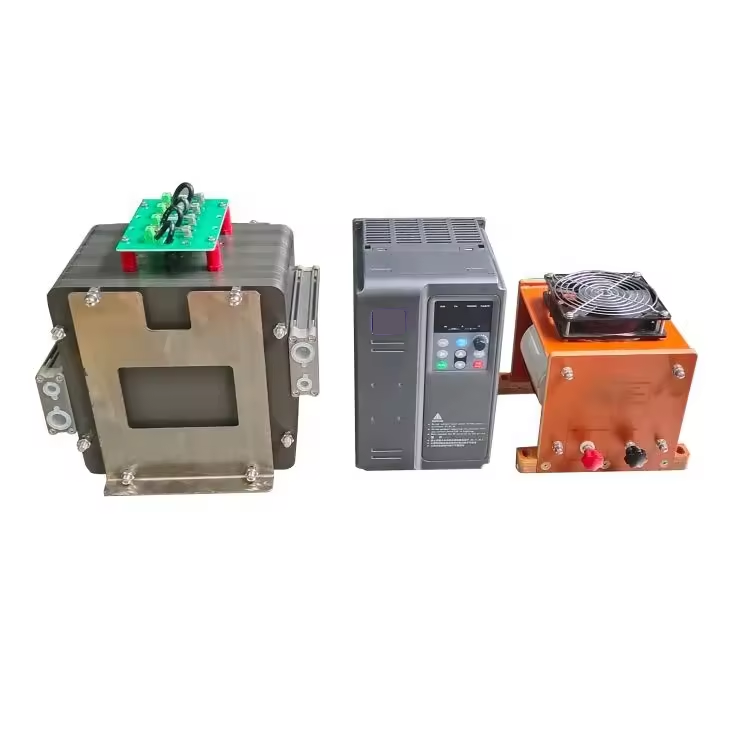

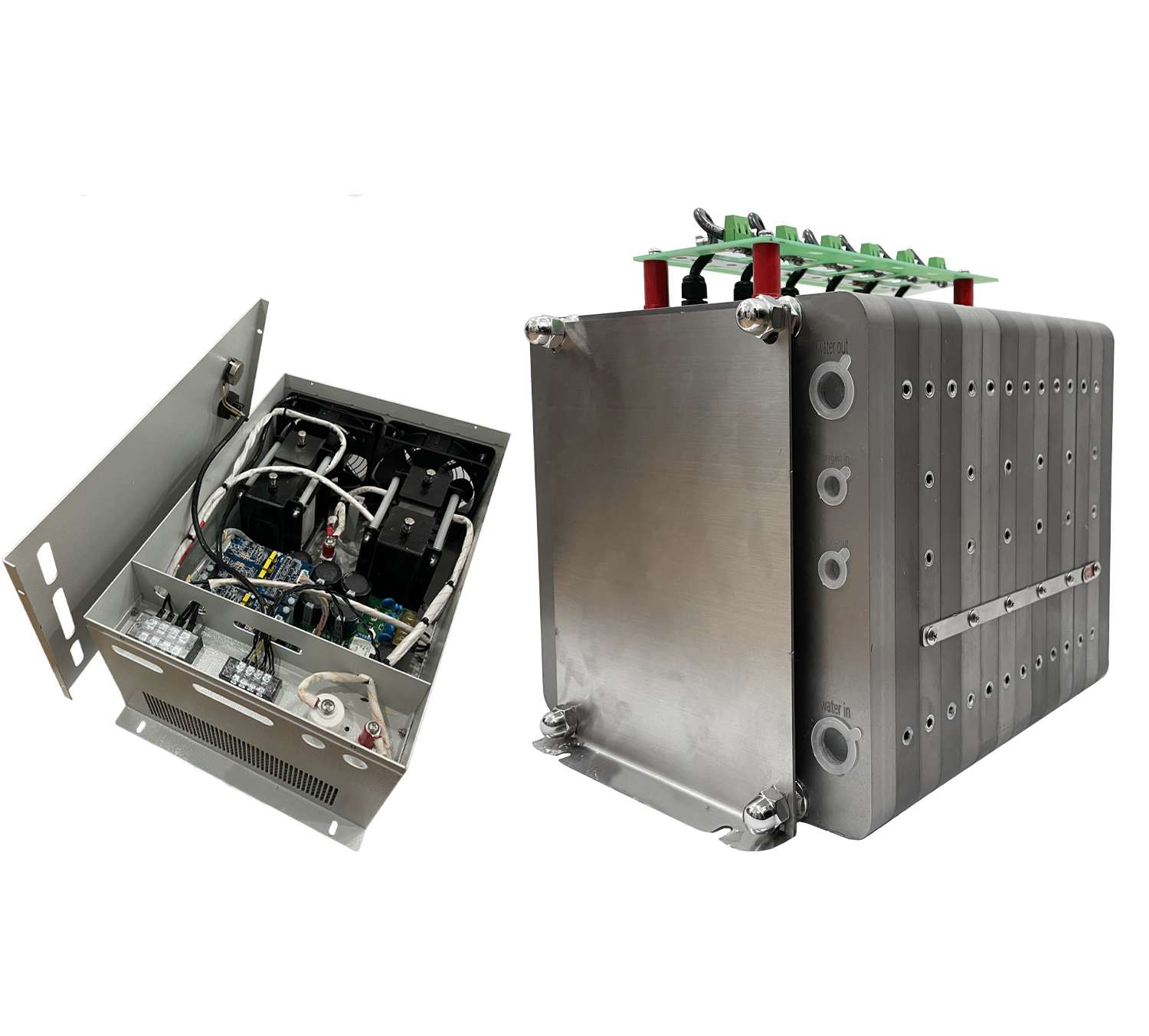

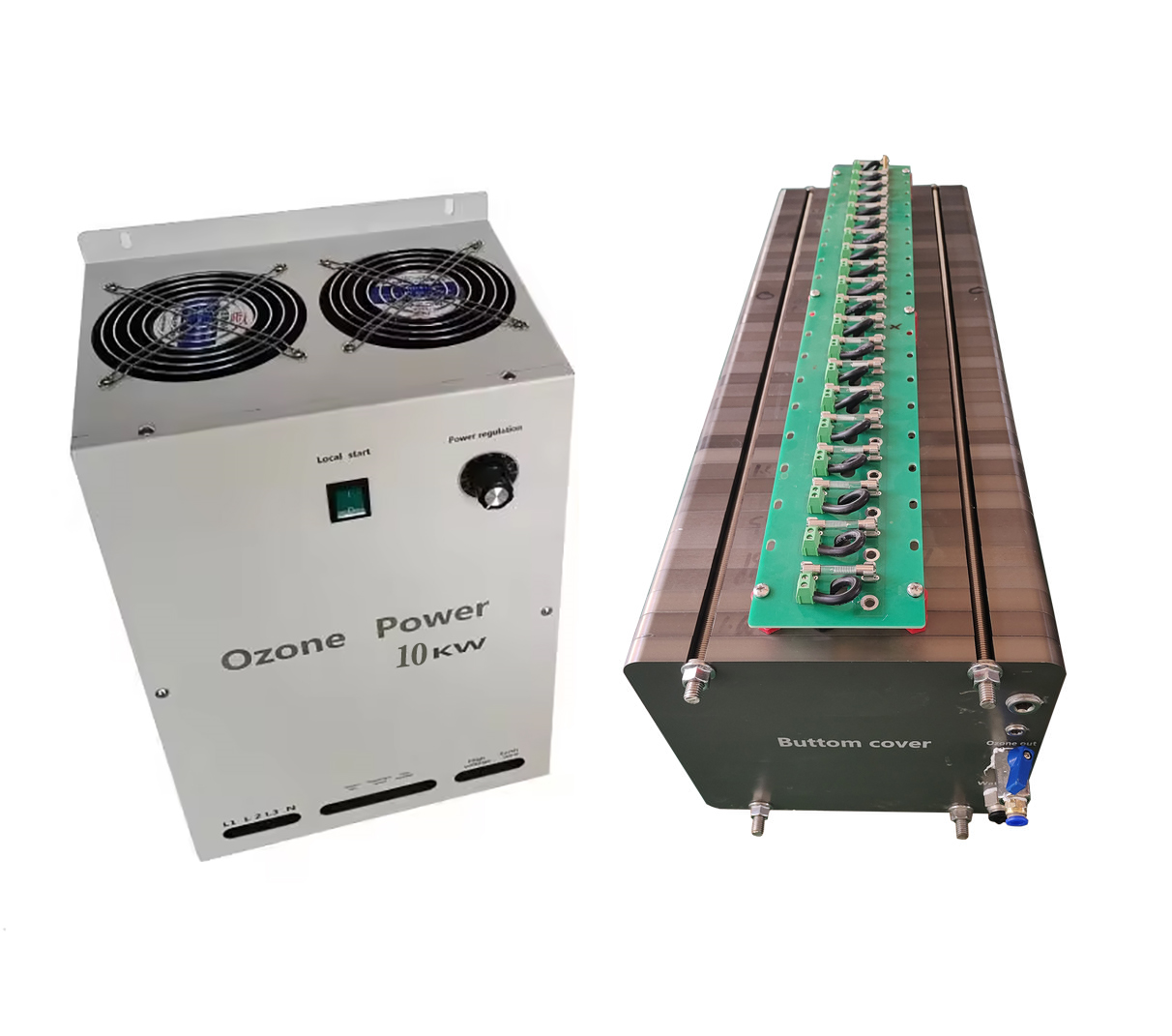

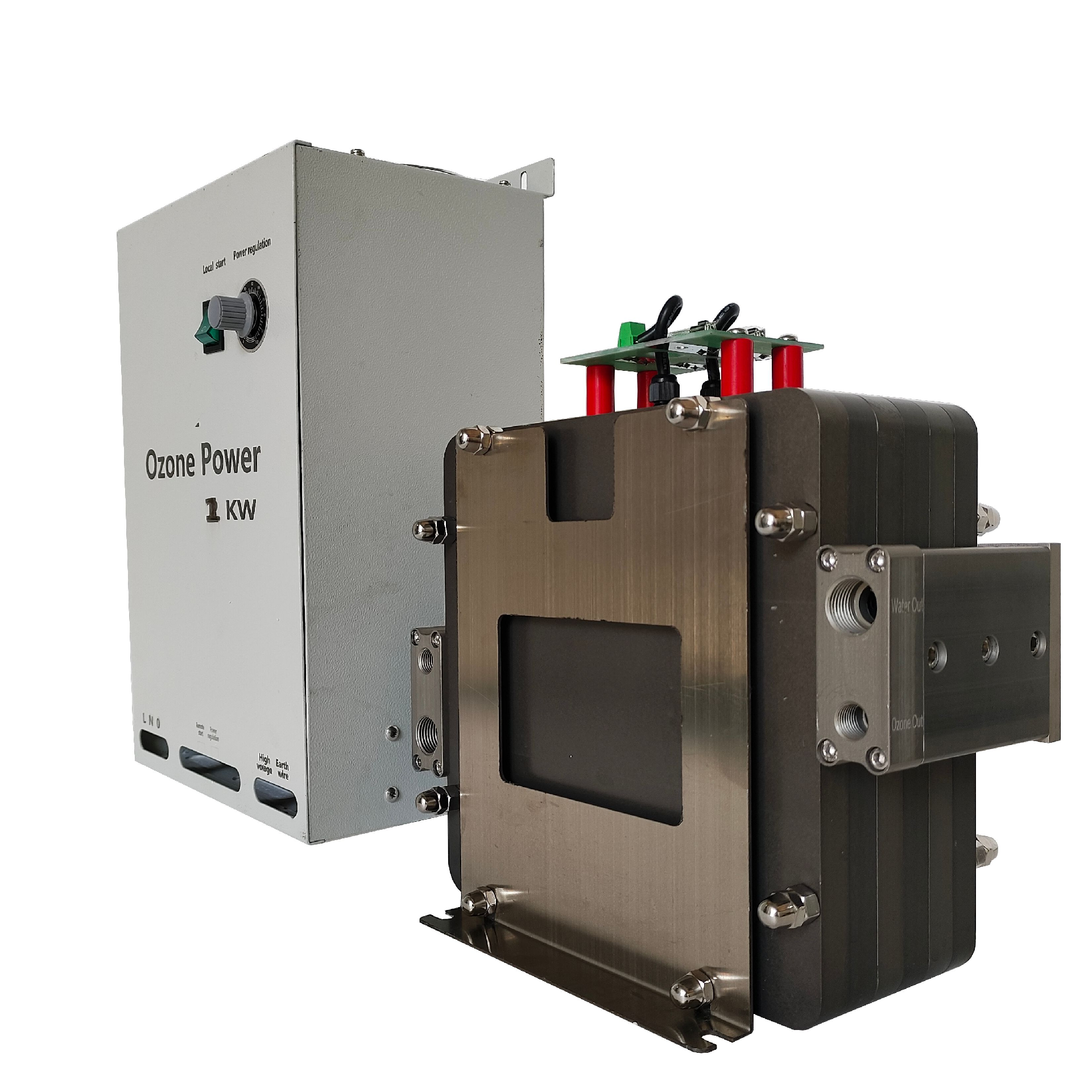

OS-OZ18 100G ~1000G Ceramic panel ozone generator unit

High ozone concentration

Rated ozone concentration above 180mg/l, max ozone concentration can up to 350mg/L. The high concentration not only means that the oxidation force is strengthened, but also feeding the flow of oxygen generator is smaller , which greatly saves energy (as we know the compressor in the oxygen machine system is a big power consumption) and production cost .The double water cooled plate ozonator system can save 30% energy compared with the traditional tubular ozonator system at the rated concentration.

Advantages of power supply

Our high frequency large plate ozone generator adopts high frequency high power supply technology, currently in the leading position in the ozone industry, the working frequency can be between 6K-10K, much higher than tubular ozone generator (about 1K), also higher than the traditional plate ozone generator (4-8K), and automatic frequency search function, This is incomparable to other manufacturers. The biggest advantage of automatic frequency seeking function: when gas pressure, gas dryness, water temperature, gas temperature fluctuations lead to capacitive changes in the discharge body, the power supply automatically selects the appropriate working frequency to adapt to it, so that the power supply works in the resonant zone, not only high working efficiency, but also prolong the service life of the equipment

Advantages of transformer

The high frequency transformer is made of high frequency E ferrite, and the high frequency ferrite inductor is connected in series at the same time, and there is no magnetic leakage phenomenon. A large amount of magnetic leakage will be generated when the traditional transformer runs at high frequency. Generate eddy current, heat the surrounding metal plate, invisible cause power loss. It also increases the risk of damage to the equipment due to heat generatio

Advantage of compact size

Our high frequency ozone generator is small and compact, which greatly saves transportation costs compared with other ozone products in the same industry.

Advantage of double electrode water cooling

OS-OZ18 Double water cooling plate structure developed by our company, dielectric material and discharge metal plate (metal plate surface ceramic film treatment) are cooled by water, because the great cooling effect, it can produce such a high ozone concentration which up to 300mg/L.

Advantages of independent small unit design

Each group of discharge body is composed of independent small units (the rated output of each small unit is 75g/h). During assembly, small units with the same capacitance are selected to form a whole, which greatly improves the ozone concentration, eliminates the phenomenon of partial load overwork and insufficient load output, and extends the service life of the equipment

Advantage of the cancel of sealant pads design

In the internal structure design of our products, we abandon the sealing pad and adopt the annular air intake mode, so that the gas is distributed more evenly in the discharge gap. by using mechanical structure of O-ring sealing design, It can bear gas pressure up to 0.8mpa, water pressure 0.8Mpa, never leak.

The dual channel cooling design of high-voltage electrode and ground electrode has a veryl high cooling rate, and the generated ozone will not be decomposed by heat, resulting inl higher ozone concentration.  Currently, our company's plate ozone generator can achieve an ozone concentration of 300mg/L

1.  Environwateros Patent Product.

2.  Discharge gap 0.15mm

3.  Rated ozone concentration 180mg/L.

4.  Power supply 110V/220V/380V/50/60Hz

5.  Design life of 10 years.
