Product feature

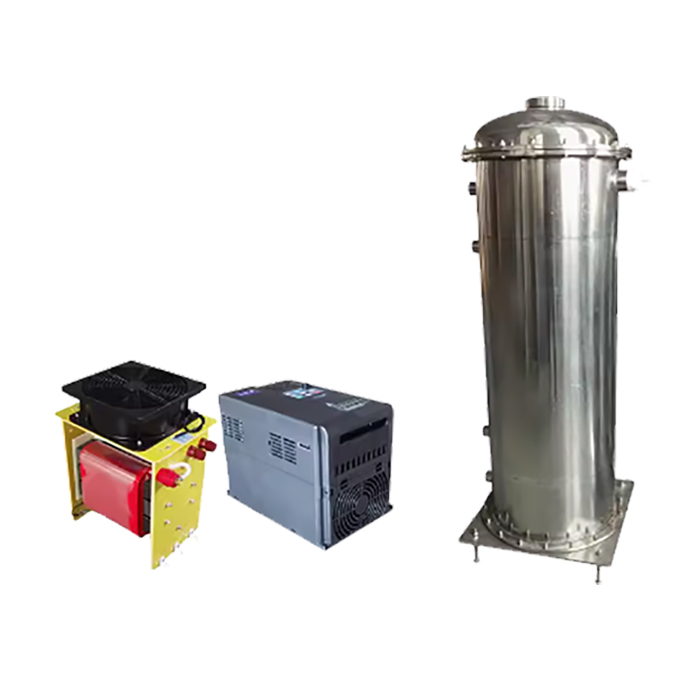

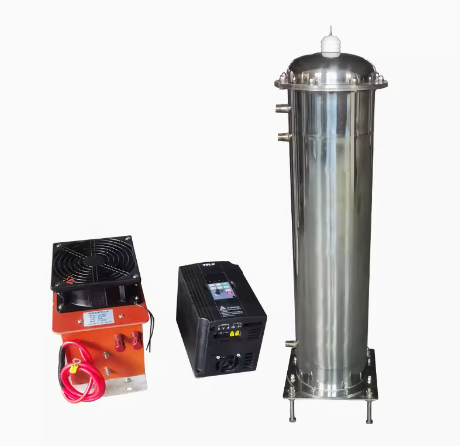

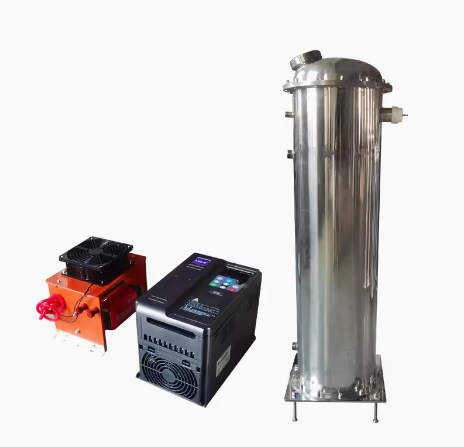

1. OS-L168-200G Cellular Quartz ozone reaction chamber uses corona discharge technology.
2. It adopts imported material of high pure silica quartz Internal electrode and SS 316L external electrode.
3. It uses high purity fluorine rubber ring seal and SS316L connections which are best anti-oxidation material.
4. Cooling way : water cooling
5. High ozone concentration 70~140mg/l
6. Ozone output: 200G/Hr
7. Stable ozone output, long service life
8. frequency converter 7khz, output voltage 4kv
Product specification
| Model | unit | OS-L168-200G | OS-L168-300G | OS-L168-500G | OS-L168-1000G |
| ozone output | g/hr | 200 | 300 | 500 | 1000 |
| o3 concentration (oxygen ) | mg/l | 80~140 | 80~150 | 80~140 | 80-150 |
oxygen flow | LPM | 4-40LPM | 6-60LPM | 1~5m3/h | 1~8m3/h |
| air source | LPM | 160-180LPM | 260-280LPM | 400-430LPM | 800-900LPM |
| o3 concentration (air) | mg/l | 10~20 | 10~20 | 10~20 | 10~20 |
| working voltage | v/hz | 110/220/380v | |||
| power | w | 50~1300w | 50-2600w | 50-4500w | 50-8000w |
| cooling way | water cooling | water cooling | water cooling | water cooling | |
| ambient temperature | °c | -10~55°c | -10~55°c | -10~55°c | -10~55°c |
| ambient humidity | %RH | less than 85% | less than 85% | less than 85% | less than 85% |
| water inlet and outlet | mm | 1/2" outside diameter | 3/4" outside diameter | 3/4" outside diameter | 3/4" outside diameter |
| air inlet and outlet | mm | 1/2" outside diameter | 3/4" outside diameter | 3/4" outside diameter | 3/4" outside diameter |
| ozone tube size | mm | D220*H900 | D273*H1100 | D325*H1100 | 1400*800*1800 |
| net weight | kg | 36 | 50 | 82 | 130 |
