Product feature

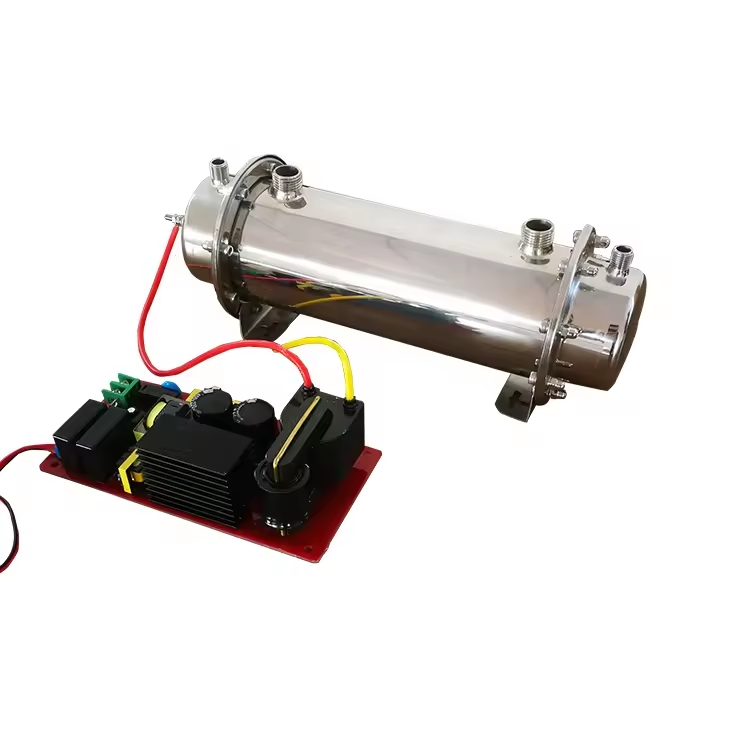

1. OS-L168-20~100G Cellular Quartz ozone reaction chamber uses corona discharge technology.
2. It adopts imported material of high pure silica quartz Internal electrode and SS 316L external electrode.
3. It uses high purity fluorine rubber ring seal and SS316L connections which are best anti-oxidation material.
4. Cooling way : water cooling
5. High ozone concentration 70~140mg/l
6. Ozone output: 20G/hr, 30G/Hr~600G/Hr
7. Stable ozone output, long service life
Product specification
| Model | unit | OS-L168-20G |
| ozone output | g/hr | 20 |
| o3 concentration (oxygen ) | mg/l | 70~120 |
oxygen flow | LPM | 1~5 |
| air source | LPM | 40~45 |
| o3 concentration (air) | mg/l | 8-15 |
| working voltage | v/hz | 110/220 |
| power | w | 10~200 |
| cooling way | water cooling | |
| ambient temperature | °c | -10~55°c |
| ambient humidity | %RH | less than 85% |
| water inlet and outlet | mm | 1/2" outside diameter |
| air inlet and outlet | mm | 1/4" outside diameter |
| ozone tube size | mm | 350*120*120 |
| power supply size | cm | 20*10*7 |
| net weight | kg | 3.4 |
