Product features:

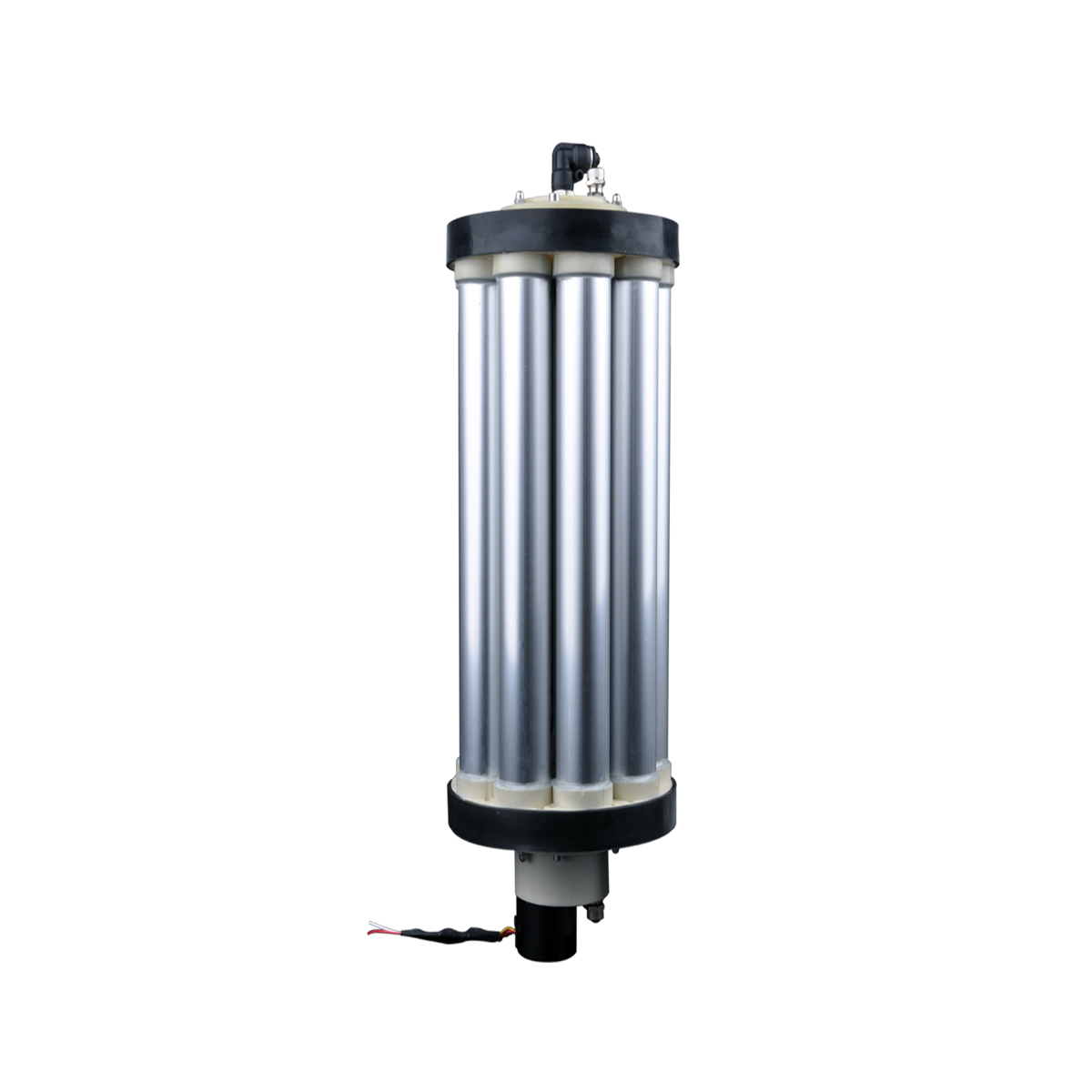

Twelve towers oxygen concentrator is unique design, advanced technology, excellent service support
1. Rational construction : Modular construction is the main points of our molecular sieve. Through the different combination of
oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
2. Easy to control : Each unit can be work independently, according to the different oxygen output requirement. And free control
for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance
will be more convenient.
3. The oxygen output is stable and continuously
4. Low-pressure oxygen production working pressure 1.5-2 Bar.
5. Working Voltage 110V/220V is available.
Product specification:
Model | OS-OXF3L | OS-OXF5L | OS-OXF7L | OS-OXF10L | OS-OXF15L | |
Item | Unit | 3L | 5L | 7L | 10L | 15L |
Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 |
Oxygen concentration | % | 90%±3% | 90%±3% | 90%±3% | 90%±3% | 90%±3% |
Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 90-115 | 180-200 |
Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.2 | 0.15-0.21 | 0.18-0.25 | 0.35 |
Pressure(outlet) | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 |
Temperature | ℃ | indoor temperature | ||||
Relative humidity | % | ≤ 70%±10% | ||||
Noise | Db | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
Dimension | mm | Ф200×310 | Ф200×430 | Ф200×500 | Ф200×560 | Ф200×880 |
Net weight | kg | 5.5 | 7 | 8 | 11 | 12.5 |
