Product description

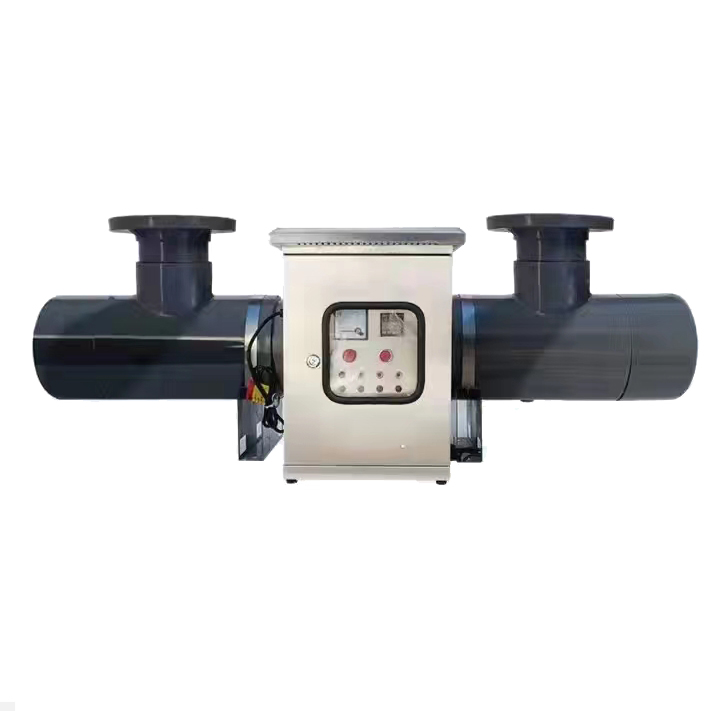

The over-flow UV sterilizer allows water to flow around the germicidal lamp in the pipeline, and can make full use of the light source of the germicidal lamp in 360 degrees. When microbial pollutants are exposed to ultraviolet light, the energy of ultraviolet can cause changes in the chemical bonds in the microbial DNA (deoxyribonucleic acid) molecules.
Ultraviolet sterilizer is one of the cleanest, pollution-free, chemical-free, color-free and odorless sterilizers, and it is also the most natural way to kill bacteria and viruses. This sterilization technology is commonly used in fresh/seawater aquariums, garden fish ponds, breeding ponds, and commercial fish farming projects. The shell material can be stainless steel or UPVC, and the maximum flow rate can reach 600 cubic meters per hour.
Specification
Model | Water flow rate | Power | Water inlet /outlet | Size |
(m3/h) | (W) | (mm) | (mm) | |
OS-UV30 | 30 | 80*5 | 90 | 900*210*340 |
OS-UV40 | 40 | 80*6 | 90 | 900*210*340 |
OS-UV50 | 50 | 80*7 | 110 | 900*260*405 |
OS-UV55 | 55 | 80*8 | 110 | 900*260*405 |
OS-UV60 | 60 | 150*5 | 110 | 1600*210*350 |
OS-UV70 | 70 | 150*6 | 140 | 1600*210*370 |
OS-UV80 | 80 | 150*7 | 140 | 1600*260*425 |
OS-UV100 | 100 | 150*8 | 160 | 1600*260*435 |
OS-UV110 | 110 | 150*9 | 160 | 1600*330*500 |
OS-UV120 | 120 | 150*10 | 160 | 1600*330*500 |
OS-UV150 | 150 | 150*12 | 200 | 1600*330*525 |
OS-UV200 | 200 | 150*16 | 200 | 1600*1140*470 |
OS-UV250 | 250 | 150*20 | 250 | 1600*1420*560 |
OS-UV300 | 300 | 150*24 | 250 | 1600*1420*560 |
OS-UV500 | 500 | 150*40 | 315 | 1600*1600*670 |
OS-UV600 | 600 | 150*48 | 315 | 1600*1600*670 |
