Feature:

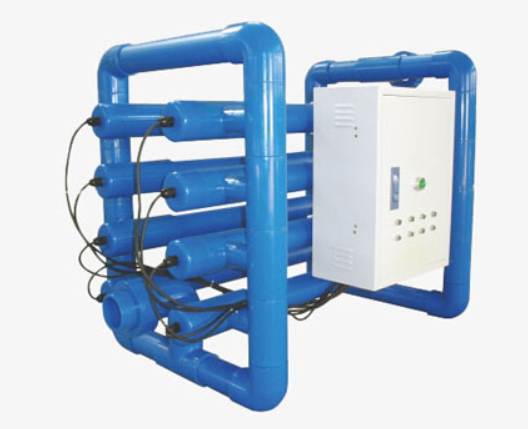

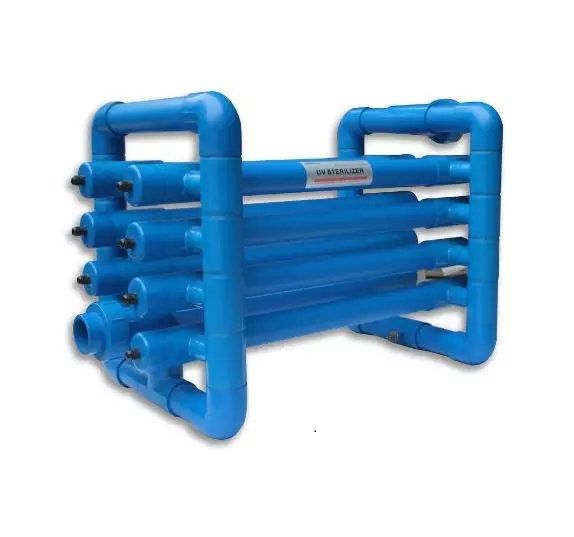

1. Filter type PVC UV sterilizer is made of special engineering plastics, which can resist all kinds of corrosion and UV radiation.
2. When used, let the water circulate through the sterilizer to disinfect and sterilize
3. Ultraviolet lamp with quartz sleeve.
4. Product pressure 0.6Mpa
5. Use a Philips UV sterilizing lamp
6. Treatment of water flow 0.2~150m3/hr
Application:
1. Swimming pools, artificial islands, and fresh water disinfection on ships
2. Drinking water, cosmetic factory water treatment sterilization and disinfection
3. Municipal sewage treatment plant, pharmaceutical factory water treatment sterilization and disinfection
4. Aquaculture and aquarium water treatment sterilization and disinfection
5. Food factory water treatment.
Data sheet
Model | Water flow rate (m3/hr) | Power (w) | UV lamp | Water inlet & outlet ( inch) |
OS-PVC-1T | 1 | 15 | 1*15W | 1/2” |
OS-PVC-2T | 2 | 30 | 1*30W | 3/4” |
OS-PVC-3T | 3 | 60 | 2*30W | 1” |
OS-PVC-6T | 6 | 120 | 4*30W | 1+1/2” |
OS-PVC-9T | 9 | 180 | 6*30W | 2” |
OS-PVC-12T | 12 | 240 | 8*30W | 2” |
OS-PVC-15T | 15 | 300 | 10*30W | 2” |
OS-PVC-0.5T | 0.5 | 16 | 1*16W | 1/2” |
OS-PVC-0.8T | 0.8 | 25 | 1*25W | 1/2” |
OS-PVC-2T | 2 | 40 | 1*40W | 3/4” |
OS-PVC-4T | 4 | 80 | 2*40W | 1” |
OS-PVC-8T | 8 | 160 | 4*40W | 2” |
OS-PVC-12T | 12 | 240 | 6*40W | 2” |
OS-PVC-20T | 20 | 320 | 4*80W | 2+1/2” |
OS-PVC-25T | 25 | 480 | 6*80W | 2+1/2” |
OS-PVC-30T | 30 | 640 | 8*80W | 2+1/2” |
OS-PVC-60T | 60 | 1200 | 8*150W | 3” |
OS-PVC-100T | 100 | 1500 | 10*150W | 4” |
