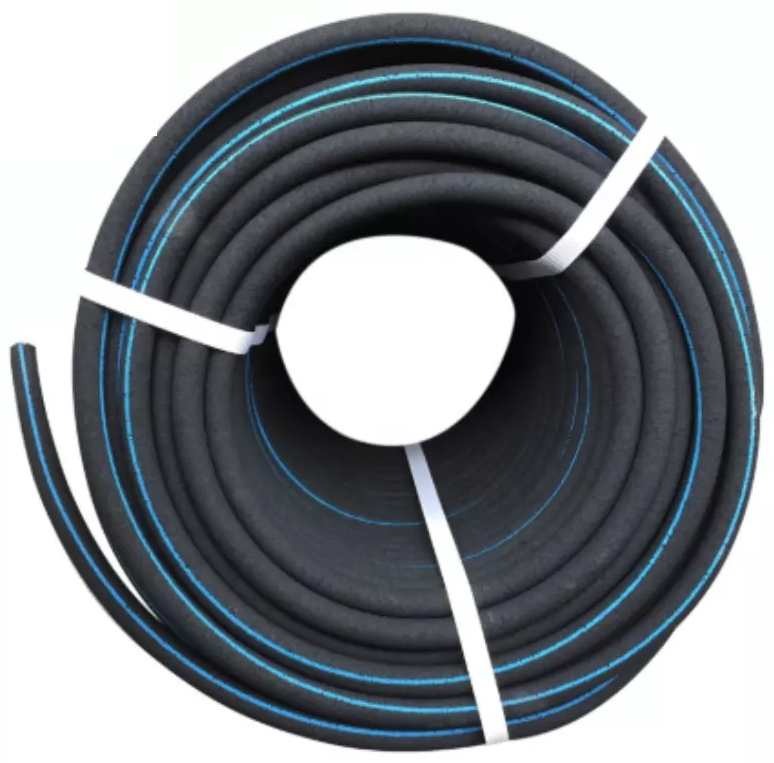

Air Diffuser Micro Nano Bubble Aeration Tubes
1. Use imported material, good elasticity, long life time
2. Little bubble diameter, high oxygenate efficiency
3. Proof deposit,install convenient
4. Low resistance loss
5. Highly Tear Resistant 、
6. Anti-clogging, anti-backflow
7. Ageing-resistant, anti-corrosion
8. High efficiency, energy-saving
Aeration Hose | Weight | Package details |
16mm*10mm | 11kgs/roll | 100m/roll |
18mm*10mm | 15kgs/roll | 100m/roll |
20mm*10mm | 18kgs/roll | 100m/roll |
25mm*10mm | 36kgs/roll | 100m/roll |
25mm*12mm | 30kgs/roll | 100m/roll |
25mm*16mm | 27kgs/roll | 100m/roll |
Nano Bubble Diffuser
Specification:
Model | OS-ADF-80 | OS-ADF-60 |
Size | 70*80*H16 | 50*60*H16 |
Average micropore size （mm） | φ0.03～φ0.06 | φ0.03～φ0.06 |
Density of micropore | 700~1200pcs/meter | |
Bubble diameter | 0.5-2mm (fresh water) 0.8-3mm (sea water), according to the water viscosity and water level has a certain change. | |
Effective aeration | 0.002 ~ 0.006 cubic meters/minute. meter | |
Air flow rate | 0.1 ~ 0.4 cubic meters/hour. meter | |
