Application :

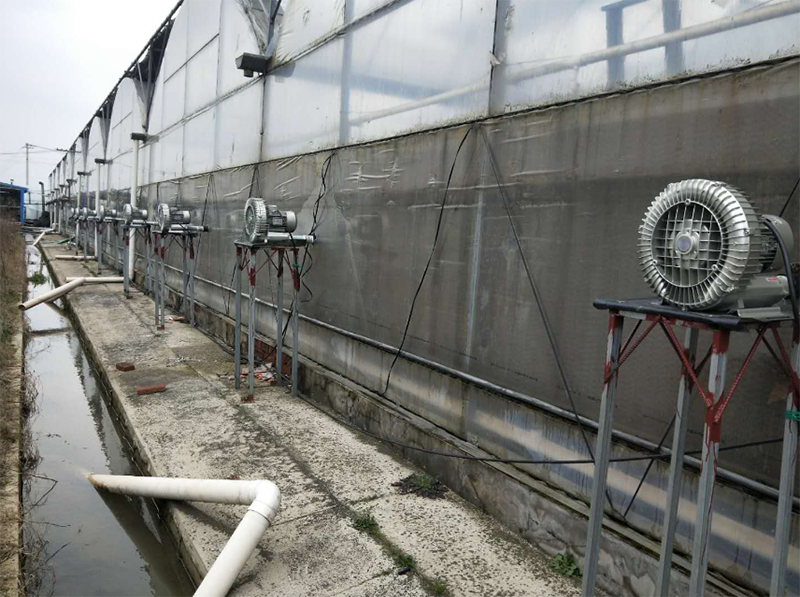

1. Aeration with oxygen
2. Aeration and aeration under water
3. Aeration and stirring cleaning of the cleaning machine
4. Fermentation treatment of sewage
Specification:
Model | Air flow rate | Power | Maximum wind pressure | Maximum suction pressure | Noise | Weight | Aerated water depth | Aeration plate | Working Voltage |
m3/h | W | Kpa | Kpa | DB | KG | meter | pcs | V/HZ | |
OS-XB-120 | 27 | 120 | 7.5 | 6.7 | 46 | 6.67 | <0.5 | 6~14 | 220 /50 |
OS-XB-180 | 30 | 180 | 8.5 | 7.6 | 46 | 6.7 | <0.6 | 8~16 | 220 /50 |
OS-XB-250 | 42 | 250 | 9.5 | 8.6 | 48 | 8 | <0.7 | 12~22 | 220 / 380 |
OS-XB-370 | 80 | 370 | 11.5 | 10.3 | 53 | 10 | <0.8 | 10~20 | 220 / 380 |
OS-XB-550 | 85 | 550 | 14 | 13 | 55 | 13 | <0.9 | 16~24 | 220 / 380 |
OS-XB-750 | 145 | 750 | 21 | 20 | 63 | 17 | <1.0 | 22~36 | 220 / 380 |
OS-XB-1100 | 210 | 1100 | 24 | 22 | 64 | 23 | <1.1 | 35~55 | 220 / 380 |
OS-XB-1500 | 240 | 1500 | 27 | 24 | 64 | 25 | <1.2 | 38~58 | 220 / 380 |
OS-XB-2200 | 230 | 2200 | 30 | 27 | 69 | 32 | <1.3 | 40~60 | 220 / 380 |
OS-XB-3000 | 318 | 3000 | 38 | 35 | 69 | 37 | <1.8 | 46~66 | 220 / 380 |
OS-XB-5500 | 500 | 5500 | 50 | 48 | 80 | 67 | <3.0 | 70~110 | 380 |
OS-XB-7500 | 520 | 7500 | 56 | 51 | 80 | 70 | <3.2 | 80~120 | 380 |
