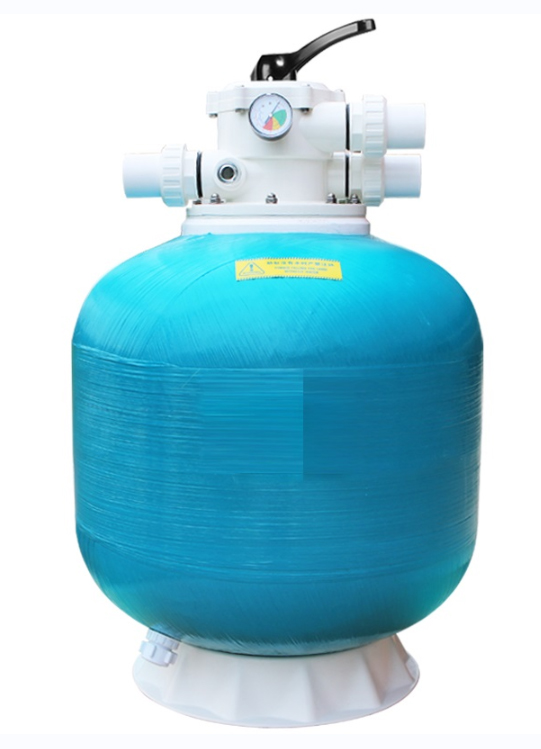

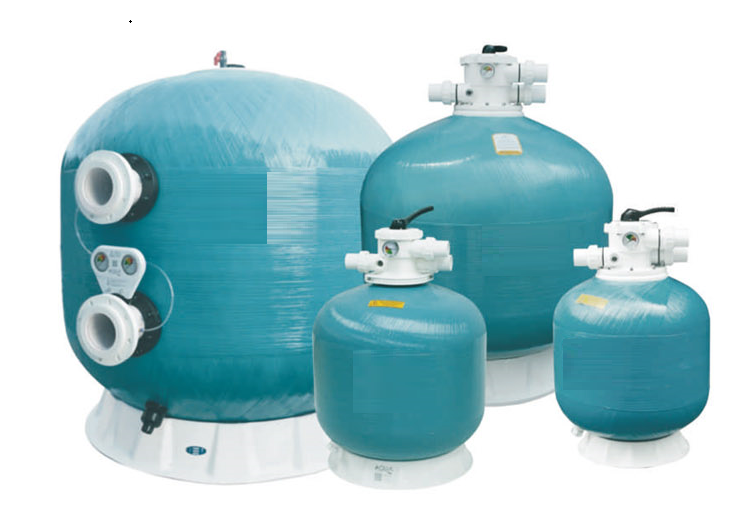

Product Feature:
1- High precision filter diameter more than 5 micron all kinds of suspended particles.
2- Glass fiber winding, make the sand filter more solid.
3- Good chemical corrosion resistance and UV protection.
Configuration of multi-directional valve, efficient work: Closed, Filter, Rinse, Backwash, Waster, Recirculate.
4- Equipped with rotary diaphragm pressure gauge.
5- Each sand filter has passed strict pressure testing, and can ensure safe and effective work under high pressure under the pressure of 2.5kg/cm2.
Specification:
Model | Diameter (mm) | Height (mm) | Water flow (m3/h) | filter area (m2) | Water outlet(mm) | Required sand weight (kg) |
OS-A400 | 400 | 750 | 6 | 0.13 | 48/50 | 30 |
OS-A450 | 450 | 810 | 8 | 0.16 | 48/50 | 45 |
OS-A500 | 530 | 870 | 9 | 0.2 | 48/50 | 80 |
OS-A650 | 630 | 870 | 15 | 0.32 | 48/50 | 130 |
OS-A700 | 700 | 960 | 17 | 0.38 | 48/50 | 190 |
OS-A800 | 800 | 1130 | 24 | 0.5 | 60/63 | 260 |
OS-A900 | 900 | 1270 | 26 | 0.64 | 60/63 | 400 |
OS-A1000 | 1000 | 1340 | 32 | 0.79 | 60/63 | 600 |
OS-A1100 | 1100 | 1460 | 38 | 0.95 | 60/63 | 800 |
OS-A1200 | 1200 | 1540 | 40 | 1.13 | 60/63 | 900 |
OS-A1400 | 1400 | 1750 | 46 | 1.53 | 60/63 | 1400 |
