Introduction:

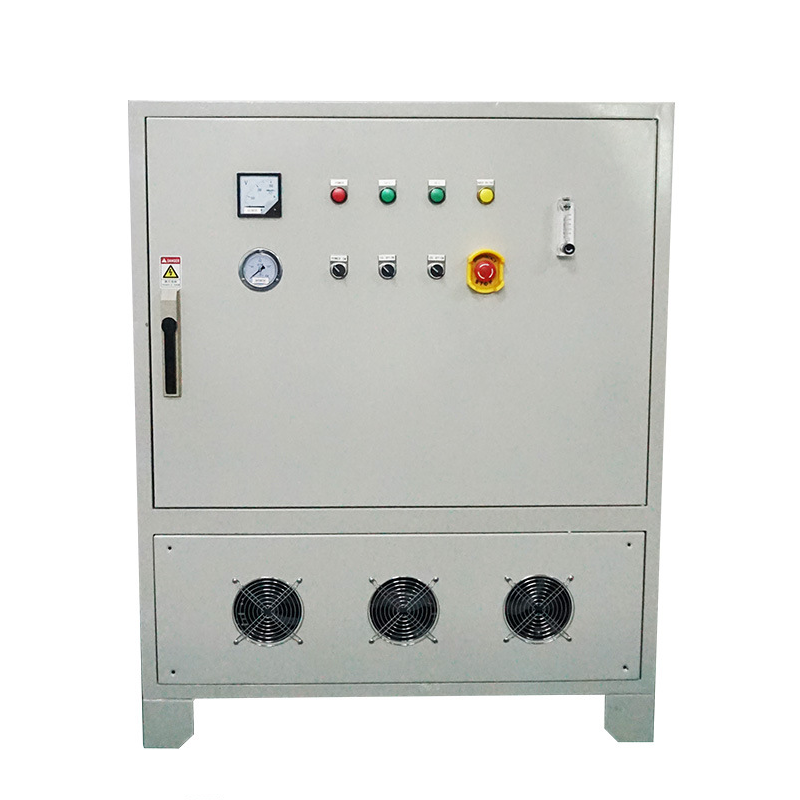

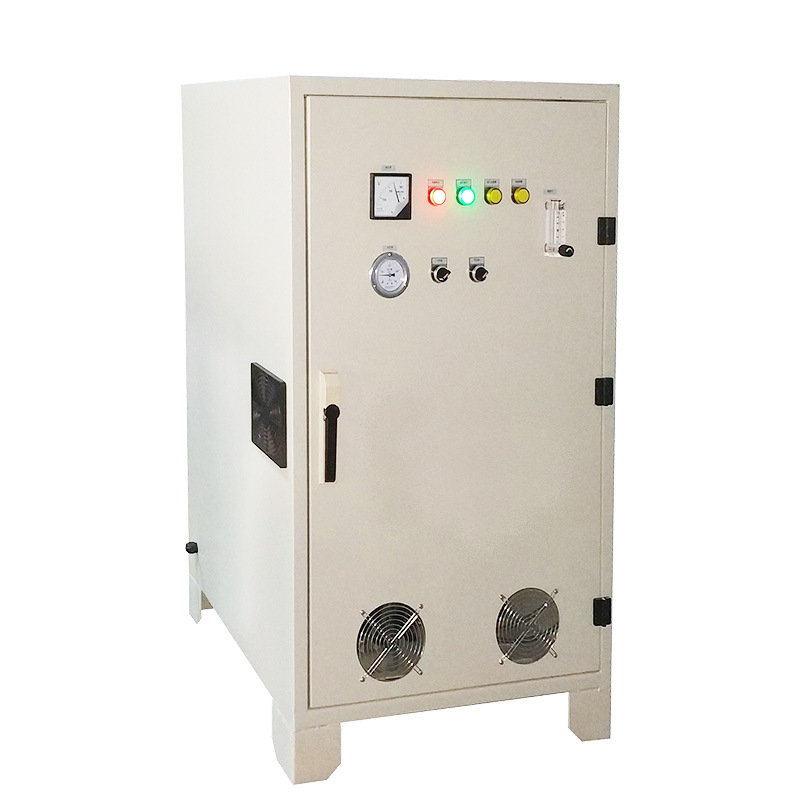

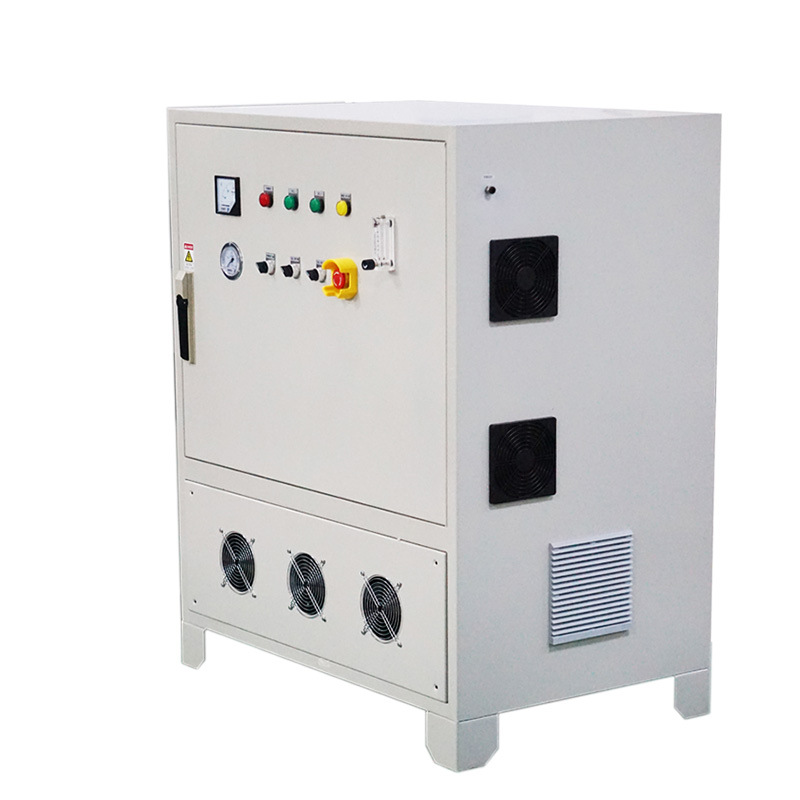

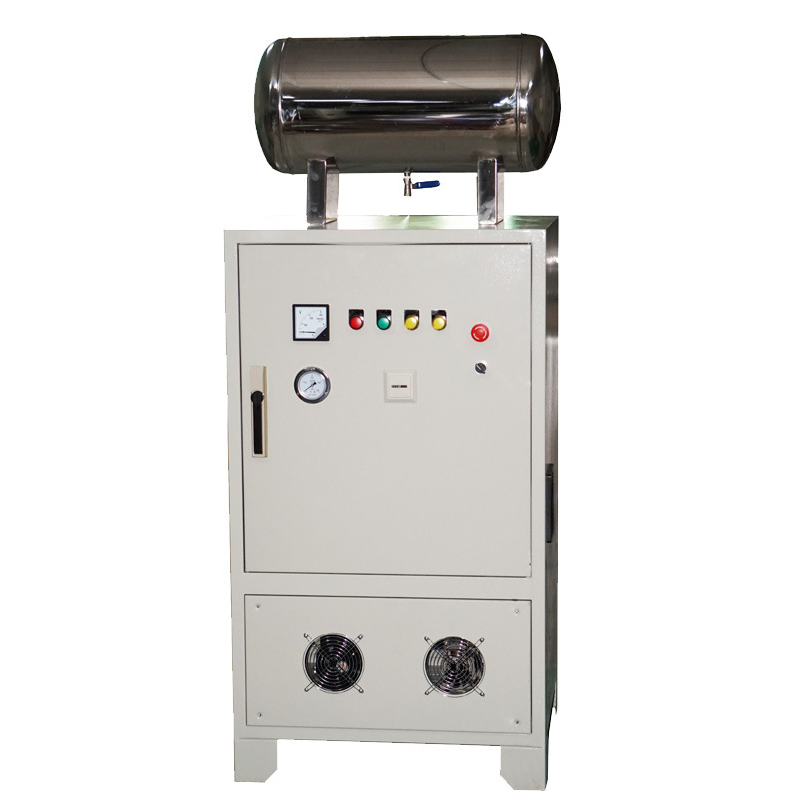

1. Integrated oxygen concentrator
2. High-efficiency molecular sieve PSA.
3. It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate oxygen and nitrogen in the air.
4. Stable and reliable work, low working noise,
5. It can be used independently or work with ozone equipment system.
Advantage of Oxygen concentrator:
1. Low working temperature of air compressor ,thus extending service life of air compressor
2. Built in refrigerated air dryer ,thus oxygen concentrator is compact .
3. Oxygen concentrator feed dry, cool ,clean air ,thus extending service life
4. stable oxygen output ,high oxygen purity
Specification :
| Model | Oxygen flow | Oxygen purity | Oxygen pressure | Power | Size | NW |
| OS-OX01-10L | 10L/min | 93±3% | 0.5~0.8bar | 1.0kw | 80*40*120 | 51kg |
| OS-OX01-15L | 15L/min | 93±3% | 0.5~0.8bar | 1.5kw | 80*40*120 | 76kg |
| OS-OX01-20L | 20L/min | 93±3% | 0.5~0.8bar | 1.8kw | 80*60*126 | 100kg |
| OS-OX01-30L | 30L/min | 93±3% | 0.5~0.8bar | 2.0kw | 80*60*126 | 147kg |
| OS-OX01-40L | 40L/min | 93±3% | 0.5~0.8bar | 3.0kw | 100*60*128 | 192kg |
| OS-OX01-50L | 50L/min | 93±3% | 0.5~0.8bar | 3.6kw | 100*60*128 | 210kg |
